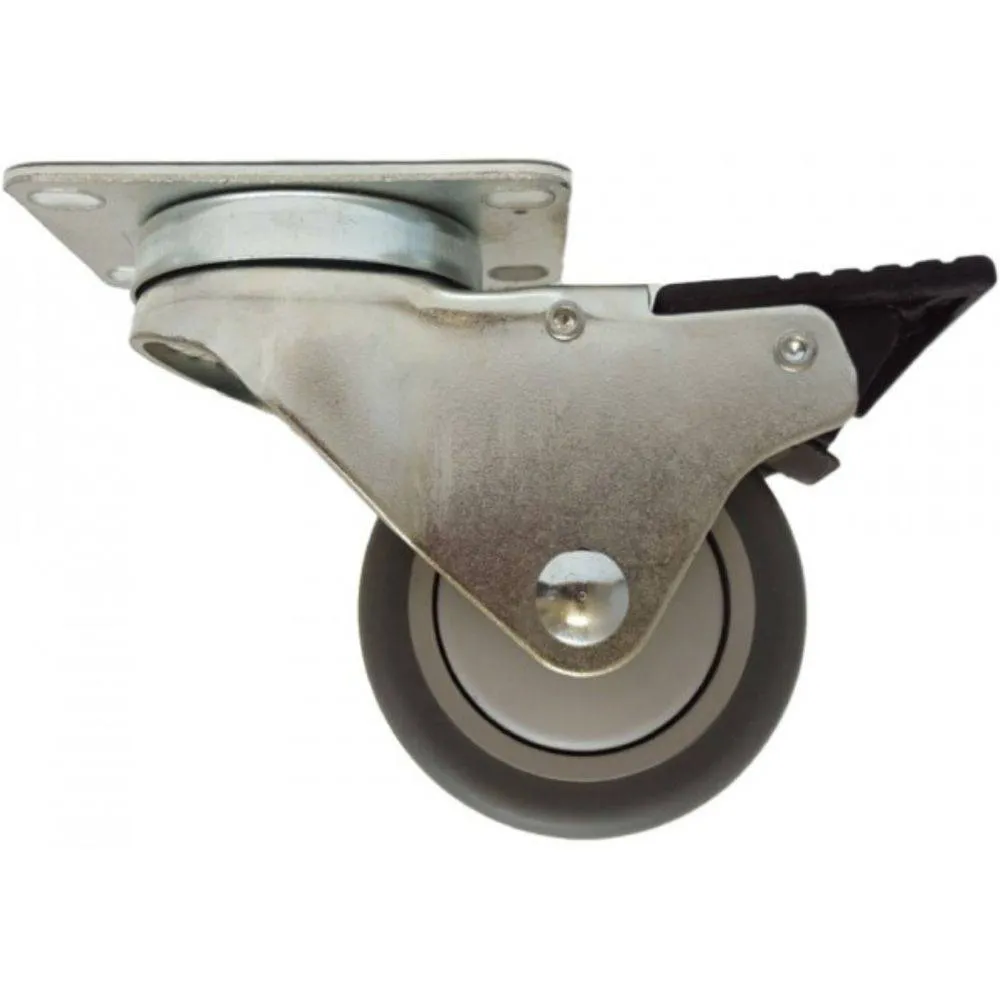

3" x 1-1/4" Thermo-Pro Wheel Swivel Caster with Total Lock Brake
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber
Core: Solid Polyolefin
Bearing: Precision Ball Bearing
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake
- Capacity: 210 Lbs.
- Color: Gray on Gray
- Durometer: Shore A 75 ( /-5)
- Temperature Range: -20° F to 180° F
| Load Capacity | 210 Lbs. |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Tread Type | Non-Marking Thermoplastic Rubber |
| Core Type | Solid Polyolefin |
| Bearing Type | Precision Ball Bearing W/ Full Thread Guards |
| Overall Height | 5-1/8" |
| Swivel Radius | 4-7/8" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Total Lock |
| Durometer | Shore A 75 ( /-5) |
| Temperature Range | -20° F to 180° F |
